nitinol shape memory alloy muscle wire
Send InquiryNitinol Muscle Wire
Overview

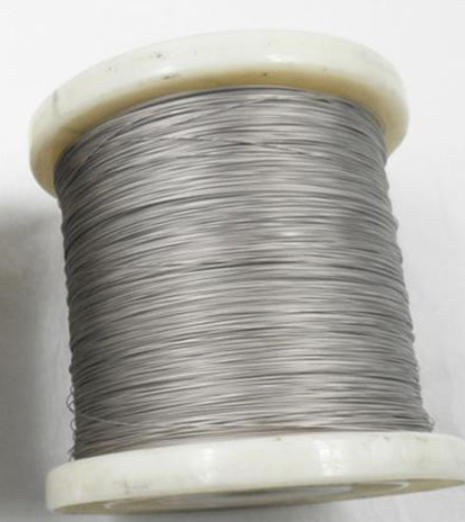

Nitinol Muscle Wire, also known as Shape Memory Alloy (SMA) wire, is a smart material that contracts when heated and returns to its original length when cooled. Composed of Nickel (Ni) and Titanium (Ti), Nitinol exhibits unique properties such as shape memory effect (SME) and superelasticity, making it ideal for actuators, robotics, medical devices, and automation systems.
Key Features
✅ High Power-to-Weight Ratio – Delivers strong linear actuation in compact designs.
✅ Silent & Smooth Operation – No gears or motors required.
✅ Long Lifespan – Can perform millions of cycles with proper use.
✅ Precise Control – Adjustable contraction via temperature or current.
✅ Corrosion Resistant – Performs well in harsh environments.
How It Works
Nitinol Muscle Wire contracts when heated (via electrical current or external heat) due to a phase transformation from martensite to austenite. When cooled, it returns to its original length.
Performance Comparison
| Property | Nitinol Muscle Wire | Traditional Solenoid | Pneumatic Actuator |
|---|---|---|---|
| Actuation Speed | Fast (ms response) | Moderate | Slow |
| Energy Efficiency | High | Medium | Low |
| Noise Level | Silent | Noisy | Noisy |
| Weight | Ultra-light | Heavy | Moderate |
Applications
1. Robotics & Automation
Used in micro-grippers, artificial muscles, and miniature actuators.
2. Medical Devices
Deployable stents, orthodontic wires, and surgical tools leverage Nitinol’s flexibility.
3. Aerospace & Defense
Lightweight actuators for drones, valves, and deployable structures.
4. Consumer Electronics
Haptic feedback systems, auto-adjusting mechanisms.
Technical Specifications
| Parameter | Value Range |
|---|---|
| Diameter Options | 0.001" – 0.020" |
| Actuation Strain | 3% – 8% |
| Operating Voltage | 1V – 5V (typical) |
| Max Pull Force | Up to 300 MPa |
| Transformation Temp | 70°C – 120°C |
FAQs
Q: How do I control Nitinol wire contraction?
A: Apply a controlled current (Joule heating) or use a temperature-regulated environment.
Q: What is the lifespan of Nitinol wire?
A: Properly used, it can exceed 1,000,000 cycles. Overheating reduces longevity.
Q: Can I cut Nitinol wire to custom lengths?
A: Yes, but ensure proper electrical contacts to avoid resistance issues.
Why Choose Our Nitinol Muscle Wire?
✔ Lab-Tested Reliability
✔ Custom Alloy Formulations
✔ Technical Support Included
🚀 Transform Your Design with Smart Actuation!
