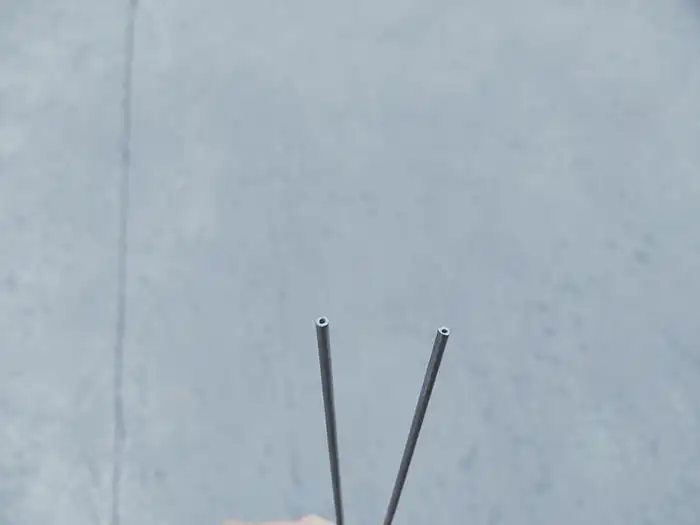

Micro nitinol tubes 0.36mm
Introduction of medical nitinol tube 5mm OD Size of medical nitinol tube:0.3~20mm OD tolerance:±0.01mm WT:0.05~2mm, according to OD size WT tolerance:according to OD and thickness L:according to OD and thickness L tolerance:±1 and according to the length Surface finish:polished or ground Inside...
Send InquiryMicro Nitinol Tubes 0.36mm OD – Precision Superelastic Tubing for Medical & Micro-Engineering
Product Description:
Engineered for minimally invasive applications, our 0.36mm micro nitinol tube delivers unparalleled flexibility, kink resistance, and shape memory performance. This ultra-small-diameter nickel-titanium tubing is ideal for medical devices and micro-mechanisms requiring reliable superelasticity in constrained spaces.
Key Advantages:
✅ Ultra-Precise Dimensions: 0.36mm OD (±0.01mm) with custom wall thickness
✅ Superelastic Performance: Up to 8% recoverable strain
✅ Medical-Grade Material: ASTM F2063 compliant nitinol tube
✅ Kink Resistance: Maintains lumen patency under tight bending
✅ Customizable Properties: Tailored Af temperatures (-20°C to +80°C)
Technical Specifications:
Outer Diameter: 0.36mm (0.014")
Wall Thickness: 0.05mm–0.08mm (standard)
Material: NiTi (55.8% Ni, 44.2% Ti)
Surface Finish: As-drawn, polished, or electropolished
Tensile Strength: 900–1200 MPa (austenitic phase)
Certifications: RoHS, REACH, ISO 13485 (upon request)
Critical Applications:
🏥 Medical Devices:
Neurovascular microcatheters
Guidewires & stent delivery systems
Endoscopic instruments
⚡ Electronics:
Micro-fluidic cooling channels
Precision sensor housings
🔬 Research:
Micro-actuators
Biomimetic implants
Why Choose Our Nitinol Tube?
Zero-Defect Precision: Laser-inspected dimensions ensure consistency
Biocompatibility: Ideal for implantable/long-term devices
Technical Support: Co-development for custom nitinol tube requirements
Request Samples Today:
Experience the performance of our 0.36mm micro nitinol tube – submit your specifications for instant quoting and material certifications.
